DESCRIPTION

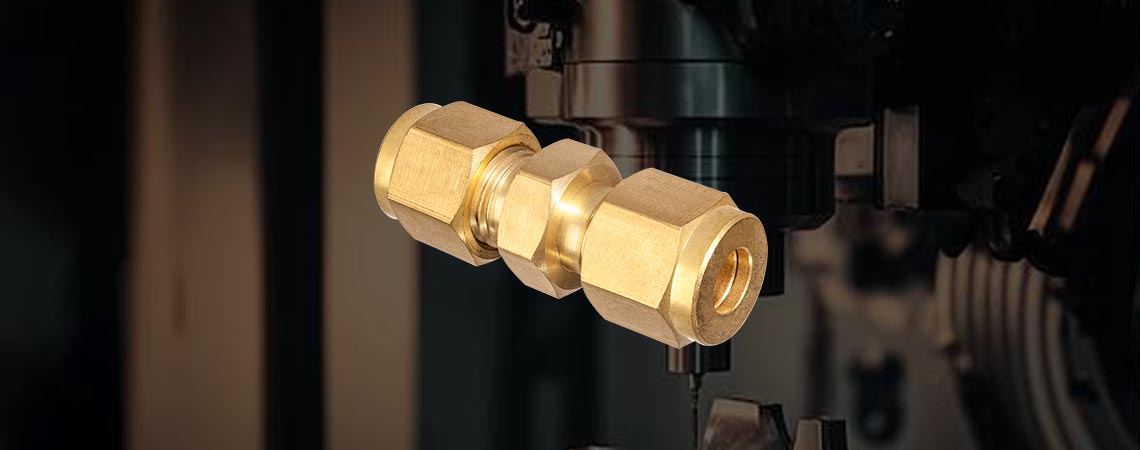

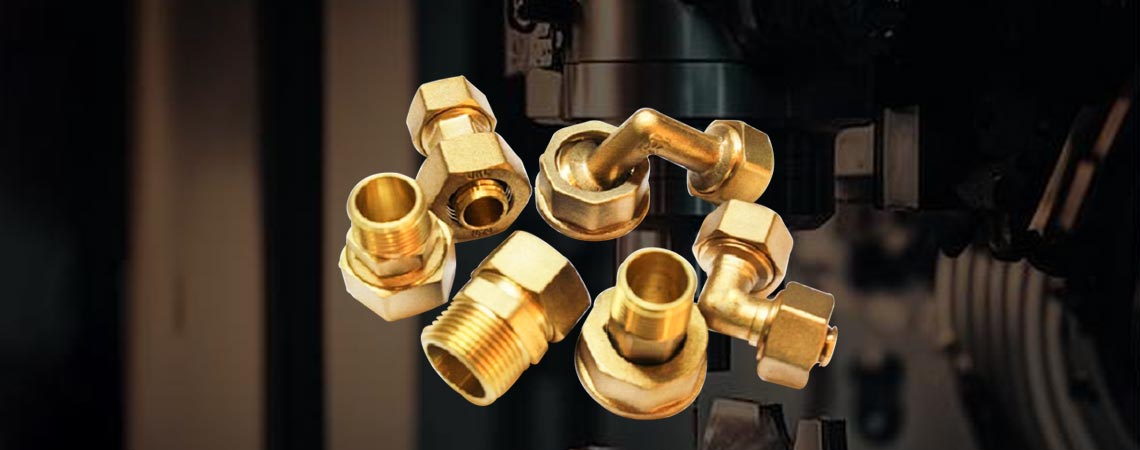

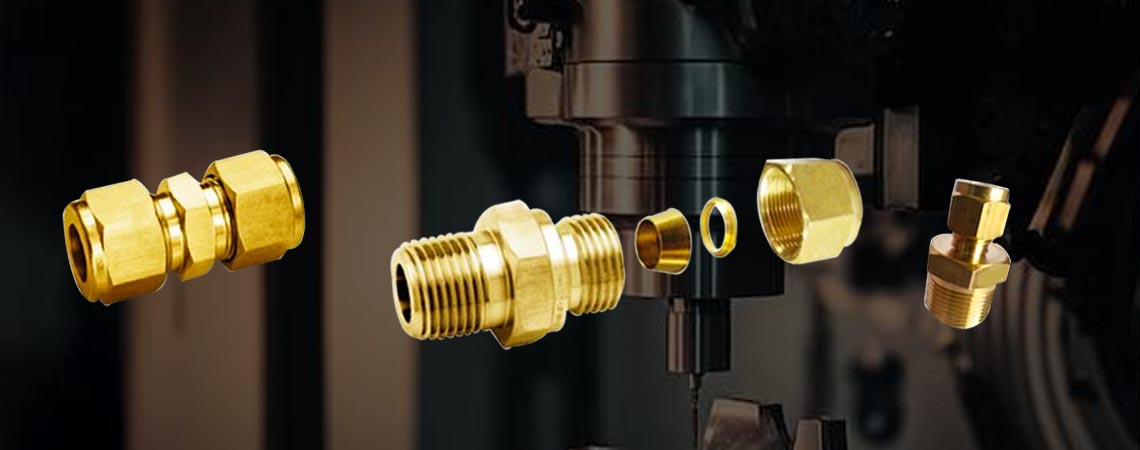

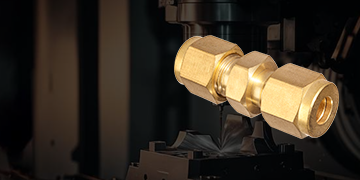

Instrumentation fittings are essential components used in various industries to connect and join instrumentation and process tubing systems. These fittings play a crucial role in creating reliable and leak-free connections for the transmission of fluids and gases in precise and controlled measurements.

Instrumentation Fittings, made from In-house Extruded Rods, These fittings ensure flawless performance with reliability and accuracy.

Features :

standards parameters
Material/ Metal/ Grades :
  • Brass, MS, SS
  • CZ121, CW614N, CW617N
Product Range :

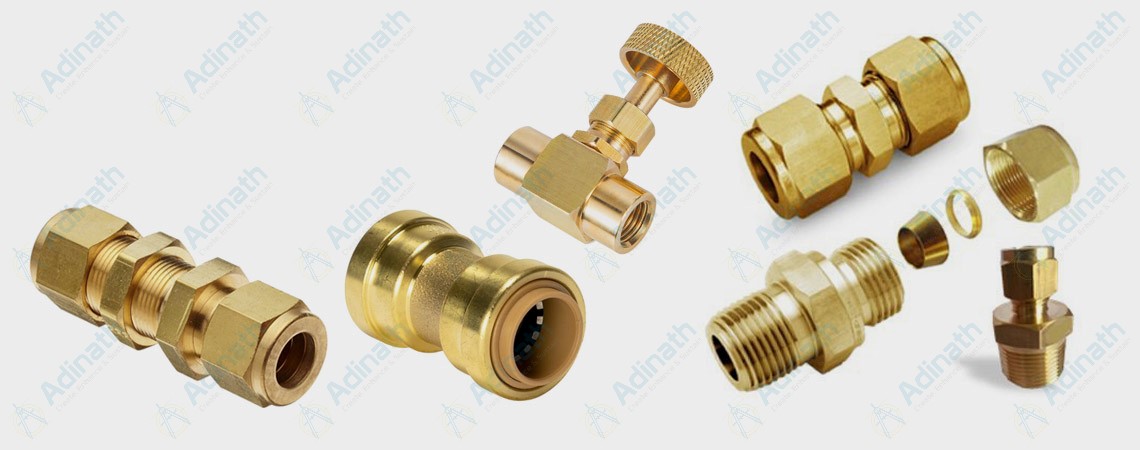

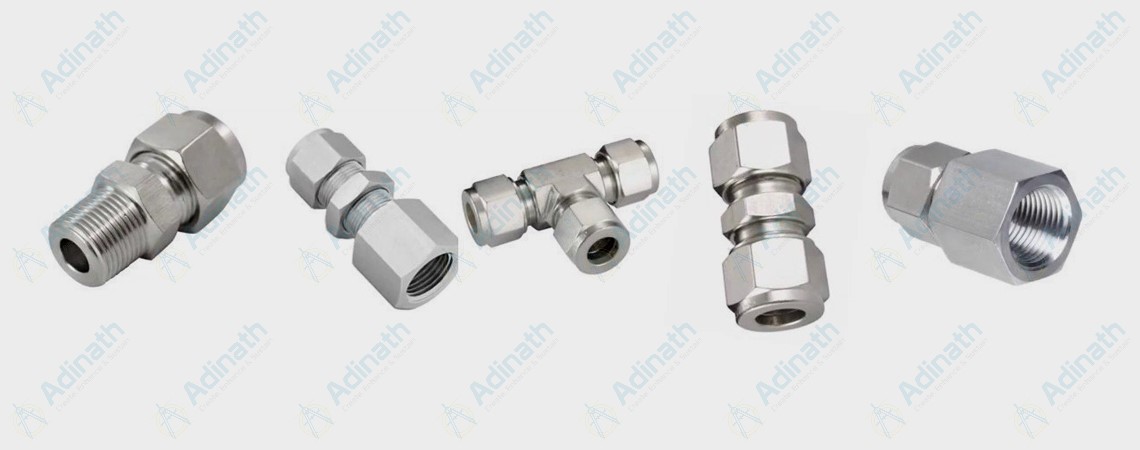

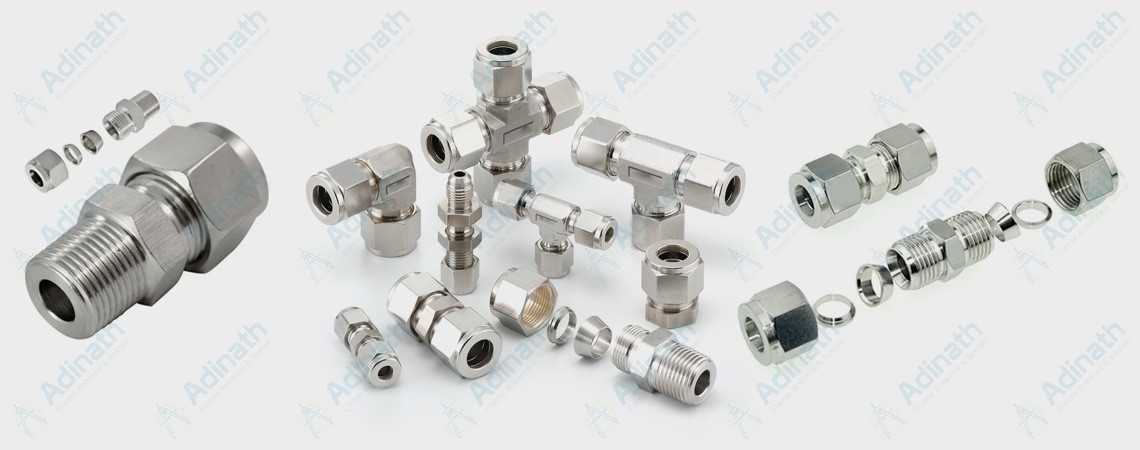

  • Bulkhead Unions, Bulkhead Union Elbow, Equal Tee, Equal Union Cross, Equal Unions, Female Adaptors, Ferrules, Tube Plug, Adaptors, Branch Tees, Connector, Cap, Tube Adapter, Hex Nipple
Processes :
  • Extrusion
  • Forging
  • Machining
  • Plating
  • Assembly (If Require)
  • The choice of manufacturing process and materials depends on factors such as the type of fitting, its intended application, required specifications, and cost considerations.
Finish & Coating :
  • Natural
  • Tin Plated
  • Nickel Plated
  • Chrome Plated
  • or choice of Plating depends on intended application & environmental conditions
Threads :
  • ISO Metric
  • UNF
  • NPT
  • BSP
Drawing Formats :
  • CAD
  • PDF
  • STEP
Packaging :
  • Standard Packaging,
  • Cardboard box
  • Wooden Box or Pallet
  • Custom Packaging with Lables and Identification or as per the level of protection
Special Services :
  • Customised Components as per Drawing
  • Sample Components can be avail prior to Production as per Requirement

Other Details :

Instrumentation fittings encompass a multitude of features and characteristics that make them indispensable components in instrumentation systems. Customization options allow for fittings tailored to specific needs, while compatibility with different tubing types ensures seamless integration.In summary, instrumentation fittings embody precision, reliability, and versatility, providing critical connections that enable accurate measurement, control, and monitoring in a wide range of industries and applications.
